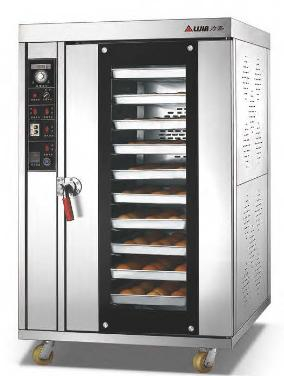

Hot Air Circulation Oven Furnace_LJC-10E
Lijia gas oven is designed and produced by guangzhou shilou shengshi food machinery co., LTD. It has the advantages of fast heating, high thermal efficiency, uniform baking, energy saving and time saving.
1. The body design is luxurious and beautiful
2. Humanized sliding door, layered glass window, real-time control of the oven condition
3. Independent control of front fire and bottom fire
4. Layer type split structure, easy to disassemble and install
5. Independent burner
6. Stainless steel combustion tube, high temperature resistance, corrosion resistance, durable without deformation
7. Pulse ignition and flame detection system, high ignition rate
8. Heat dissipation plate, effective and timely play a role, prolong the service life
9. Accidental flameout or gas flameout, automatic glance, safety and worry
10. Universal caster, convenient and labor-saving
11. Using liquefied petroleum gas as fuel, high combustion thermal efficiency and energy saving
Technical parameters
|
Model |
Voltage (V) |
Power （Kw） |
Size (mm) |
Weight (Kg) |
|
LJC-5E |
220 |
1 |
930*1120*960 |
130 |
|
LJC-8E |
220 |
1.1 |
930*1120*1280 |
170 |
|
LJC-10E |
220 |
1.1 |
930*1120*1790 |
266 |
|
Model |
Voltage (V) |
Power （Kw） |
Size (mm) |
Weight (Kg) |
|
LJC-5Q |
380 |
7.5 |
870*1140*1240 |
125 |
|
LJC-8Q |
380 |
18 |
870*1140*1550 |
160 |
|
LJC-10Q |
380 |
18 |
870*1140*1765 |
251 |
Luxurious oulok. The electic power type using high quality motor, which is better saving energyman common type. The gas type made with heating pipe and heating exchanger, made witthign quanlity and extra- thick insulation material. The two models both have microcomputeconnrol pannel, many functiones can be adjusted, Automatic temperature control systet, whichmake the baking inviroment under the best. Inner with raotry heating fan, making the temperatureunifomn. Double control systemns of surface and bottom, can suppling the best baking envitoment.
